CR-PK05B — Ku-Band Medium-Range Pulse-Doppler Phased Array Radar
Flexible Ku-band radar platform for drone detection projects that require AI classification, low false alarms, and single-panel, turntable, or multi-panel deployment options.
The CR-PK05 series Ku-band medium-range phased array radar employs a fully solid-state, fully coherent, pulse-Doppler architecture for all-weather detection and early warning of "Low-Small-Slow" targets. Using machine learning and AI classification based on micro-Doppler and track features, the system achieves effective detection and classification of UAVs, light aircraft, helicopters, powered hang-gliders, airships, and aerostatic balloons at extremely low false-alarm rates. The 2D phase-scan architecture is expandable to mechanical + phase-scan and multi-panel configurations to suit various deployment scenarios.
Single-Panel Option for Fixed-Angle Detection

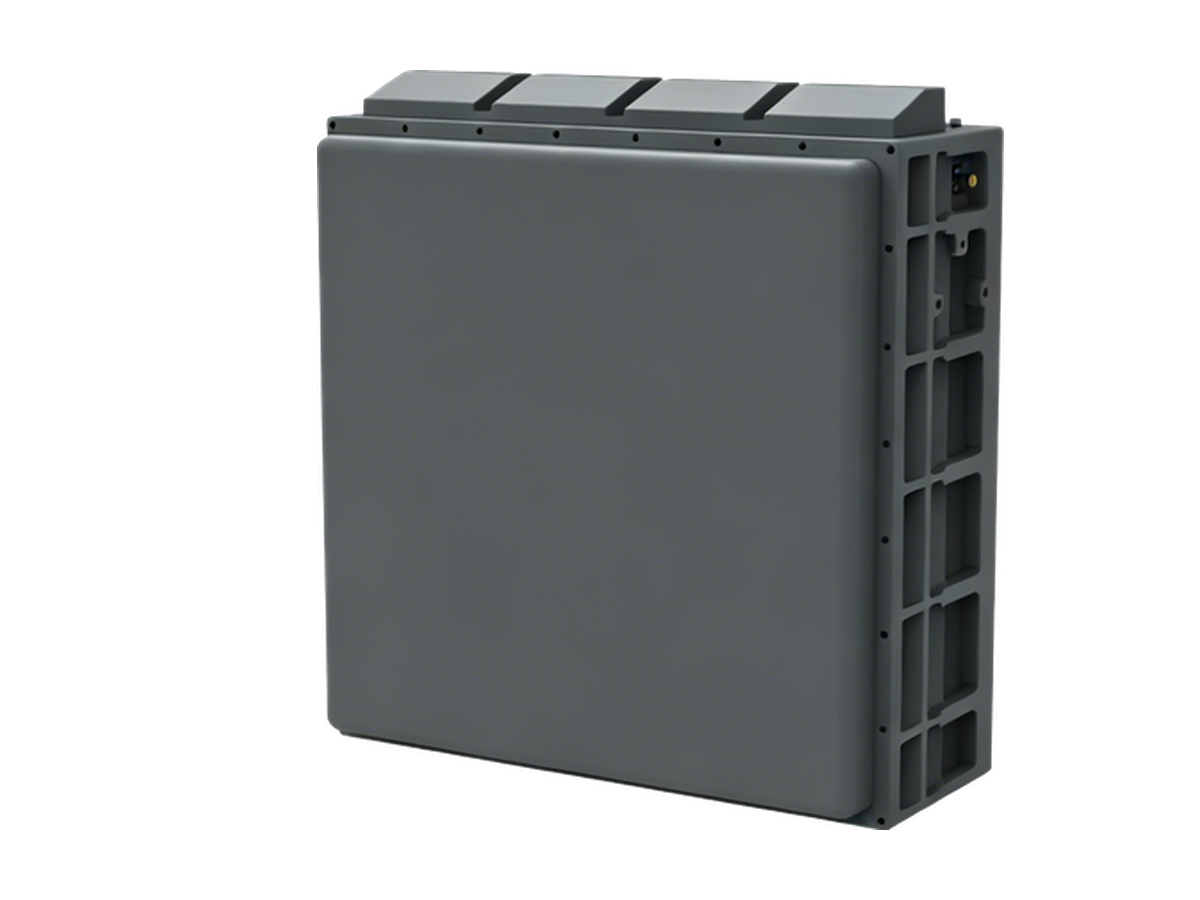

Need to watch a fixed sector rather than scan 360°? The same array is available without the turntable as the CR-PK05A: a 13kg single-panel unit covering a ±45° azimuth sector (elevation 0°~80°) with a 5km drone detection range — ideal for fixed-angle detection on walls, poles and rooftops. Use the inquiry form for the single-panel datasheet.
Key Features
Detection & Coverage
- Mechanical and electronic scan modes provide 360° airspace and key-area coverage; the two modes switch flexibly with no software change;
- Rain and cloud clutter suppression enables all-weather operation;
- Instrumented range and elevation scan coverage are configurable.
Tracking & Classification
- Mechanical-scan tracking and electronic-scan TAS tracking;
- AI classification based on micro-Doppler and track features identifies drones, birds, people and vehicles;
- Strong detection performance with a low false alarm rate; stably detects maneuvering drones.
Data & Operation
- Machine learning adapts to the site environment — works on installation with no parameter tuning;
- Built-in self-positioning calibration module with automatic leveling and north-finding;
- Map-based target positioning, track display and replay with range, azimuth, elevation and velocity readouts.
Specifications
| Frequency band | Ku band (15.7GHz ~ 16.7GHz) |
| Detection range | ≥5km (RCS 0.01m², drone) |
| Blind zone | ≤150m |
| Operating mode | Mechanical scan + 2D electronic scan |
| Search coverage | Mechanical: azimuth 0°~360° Elevation 0°~60° (mission configurable) Electronic: azimuth -45°~45° Elevation 0°~60° (mission configurable) |
| Tracking | Mechanical-scan tracking / electronic-scan TAS |
| TAS tracked targets | ≥6 |
| Minimum detection altitude | ≤10m |
| Velocity range | 1m/s ~ 100m/s |
| Update rate | Mechanical ≤3.8s Electronic ≤3.5s (elevation coverage 30°) |
| Resolution | Range ≤15m Azimuth ≤6° Elevation ≤4° |
| Search accuracy (RMS) | Range ≤10m Azimuth ≤0.5° Elevation ≤0.4° |
| Tracking accuracy (RMS) | Range ≤10m Azimuth ≤0.3° Elevation ≤0.3° |
| Target capacity | ≥500 targets |
| Communication | RJ45 Ethernet |
| Power supply | AC220V / DC24V |
| Power consumption | ≤400W |
| Weight | ≤28kg (excl. power supply and tripod) |
| Dimensions | ≤575 × 317 × 220mm |
| Operating temperature | -40℃ ~ +70℃ |
| Protection rating | IP66 |
Standard Delivery
| Radar array | 1 Unit |
| Servo turntable | 1 Set |
| AC/DC power adapter | 1 Set |
| Ethernet cable | 1 PC |
| GPS antenna (with cable) | 1 Pair |
| Mounting accessories | 1 Set |
| Product certificate | 1 Copy |
| Operation & maintenance manual | 1 Copy |
| Display & control software and communication protocol | 1 Set |
Packing & Logistics
The complete set is packed in 2 cartons with a total gross weight of approximately 48kg.
| No. | Contents | Carton dimensions (L×W×H, mm) | Gross weight |
|---|---|---|---|
| 1 | Radar host (array and servo turntable) | 775 × 440 × 245 | ≈30kg |
| 2 | Power adapter, cables and accessories | 490 × 350 × 320 | ≈18kg |
