CR-PX10B — X-Band Short-Range Pulse-Doppler Phased Array Radar
Short-range X-band radar for close perimeter coverage, rooftops, event sites, prisons, and temporary deployments where compact size and quick setup matter.
The CR-PX10 series X-band short-range phased array radar employs a fully solid-state, fully coherent, pulse-Doppler architecture for all-weather detection and early warning of "Low-Small-Slow" targets. AI classification based on micro-Doppler and track features enables effective detection and classification of UAVs, light aircraft, helicopters, and other targets at extremely low false-alarm rates. Expandable to mechanical + phase-scan and multi-panel configurations.
Single-Panel Option for Fixed-Angle Detection

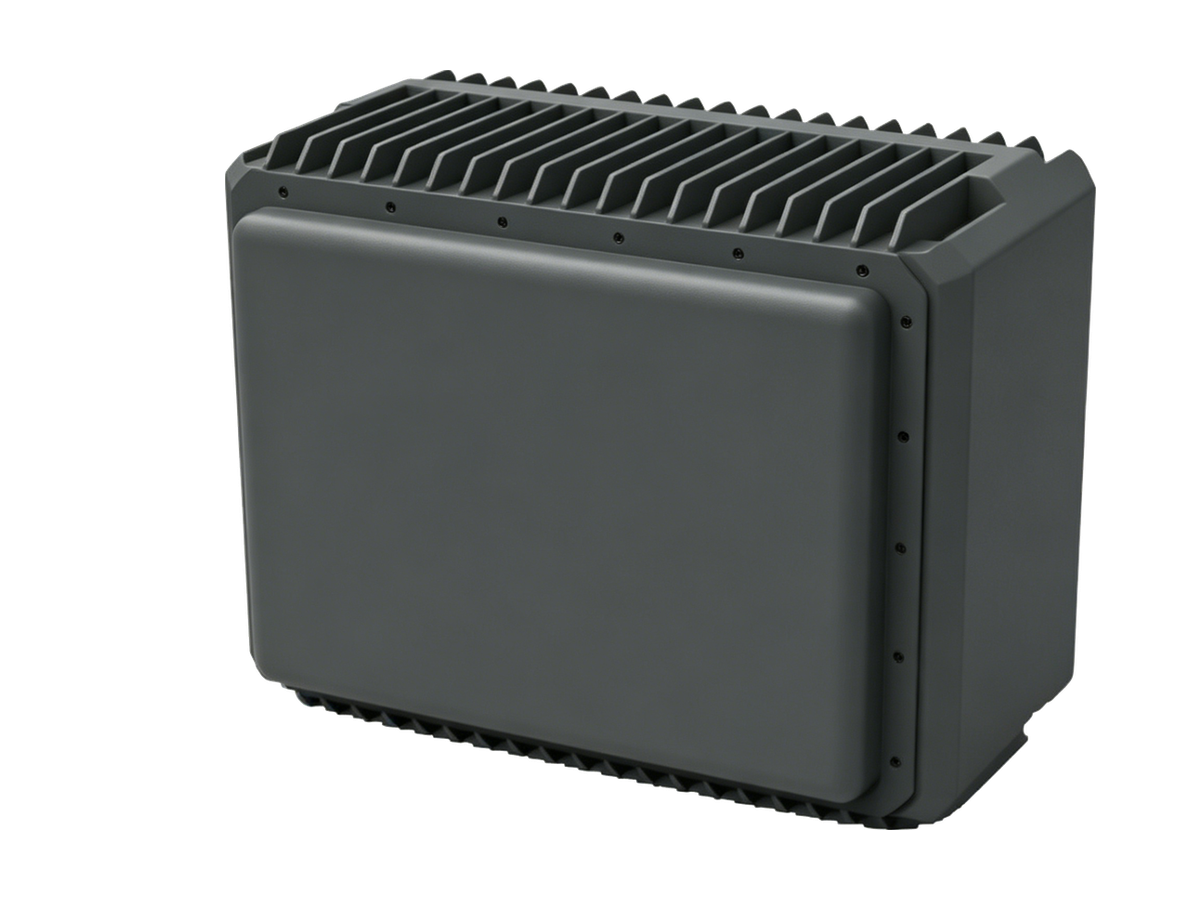

Need to watch a fixed sector rather than scan 360°? The same array is available without the turntable as the CR-PX10A: a 7.5kg single-panel unit covering a ±45° azimuth sector (elevation 0°~30°, configurable to 60°) with a 1.5km drone detection range — ideal for fixed-angle detection on walls, poles and rooftops. Use the inquiry form for the single-panel datasheet.
Key Features
Detection & Coverage
- Strong detection performance with a low false alarm rate; stably detects maneuvering drones;
- Rain and cloud clutter suppression enables all-weather operation;
- Mechanical scan plus one-dimensional electronic scan, and full 2D electronic scan modes provide 360° airspace coverage and priority-sector surveillance, switching flexibly without any software change;
- Instrumented range and elevation scan coverage are configurable per mission.
Tracking & Classification
- Mechanical-scan tracking and electronic-scan TAS tracking;
- AI classification based on micro-Doppler and track features distinguishes drones, birds, people and vehicles.
Deployment & Operation
- Machine learning adapts to the site environment — the radar works on installation with no parameter tuning;
- A built-in self-positioning calibration module provides automatic leveling and north finding;
- Under 17kg (excluding power supply and tripod) for rapid field deployment.
Specifications
| Frequency band | X band (9.2GHz ~ 9.8GHz) |
| Detection range | ≥1.5km (RCS 0.01m², drone) |
| Blind zone | ≤80m |
| Operating mode | Mechanical scan + 2D electronic scan |
| Search coverage | Mechanical: azimuth 0°~360° Elevation 0°~60° (mission configurable) Electronic: azimuth -45°~45° Elevation 0°~60° (mission configurable) |
| Tracking | Mechanical-scan tracking / electronic-scan TAS |
| TAS tracked targets | ≥6 |
| Minimum detection altitude | ≤10m |
| Velocity range | 1m/s ~ 100m/s |
| Update rate | Mechanical ≤3s Electronic ≤3s (elevation coverage 30°) |
| Resolution | Range ≤15m Azimuth ≤12° Elevation ≤12° |
| Search accuracy (RMS) | Range ≤10m Azimuth ≤1° Elevation ≤1.2° |
| Tracking accuracy (RMS) | Range ≤10m Azimuth ≤0.8° Elevation ≤0.8° |
| Target capacity | ≥500 targets |
| Communication | RJ45 Ethernet |
| Power supply | AC220V / DC24V |
| Power consumption | ≤170W |
| Weight | ≤17kg (excl. power supply and tripod) |
| Dimensions | ≤410 × 265 × 135mm |
| Operating temperature | -40℃ ~ +60℃ |
| Protection rating | IP66 |
Standard Delivery
| Radar array | 1 Unit |
| Servo turntable | 1 Set |
| AC/DC power adapter | 1 Set |
| Ethernet cable | 1 PC |
| GPS antenna (with cable) | 1 Pair |
| Mounting accessories | 1 Set |
| Product certificate | 1 Copy |
| Operation & maintenance manual | 1 Copy |
| Display & control software and communication protocol | 1 Set |
Packing & Logistics
The complete set is packed in 2 cartons with a total gross weight of approximately 34kg.
| No. | Contents | Carton dimensions (L×W×H, mm) | Gross weight |
|---|---|---|---|
| 1 | Radar host (array and servo turntable) | 775 × 440 × 245 | ≈19kg |
| 2 | Power adapter, cables and accessories | 490 × 350 × 320 | ≈15kg |
