XR-RD06 Series
Low-Altitude Surveillance Radar
X-Band Medium-Range Phased Array Radar
The XR-RD06 series X-band medium-range phased array radar employs a fully solid-state, fully coherent, pulse-Doppler architecture for all-weather detection and early warning of "Low-Small-Slow" targets. AI classification based on micro-Doppler and track features enables effective detection and classification of UAVs, light aircraft, helicopters, and other targets at extremely low false-alarm rates. Expandable to mechanical + phase-scan and multi-panel configurations.
Model Variants
Variant Specifications
| Products | XR-RD06A |
|---|---|
| Operating Mode | 2D Phased Array |
| Search Coverage | Azimuth: -45°~45°, Elevation: 0°~80° (configurable) |
| Target Update Rate | TWS: ≤3s (30° elevation), TAS: ≤0.5s (default) |
| Weight | ≤8.5kg (single panel) |
| Power Consumption | ≤200W |
| Dimensions | ≤195mm×316mm×165mm |
Variant Specifications

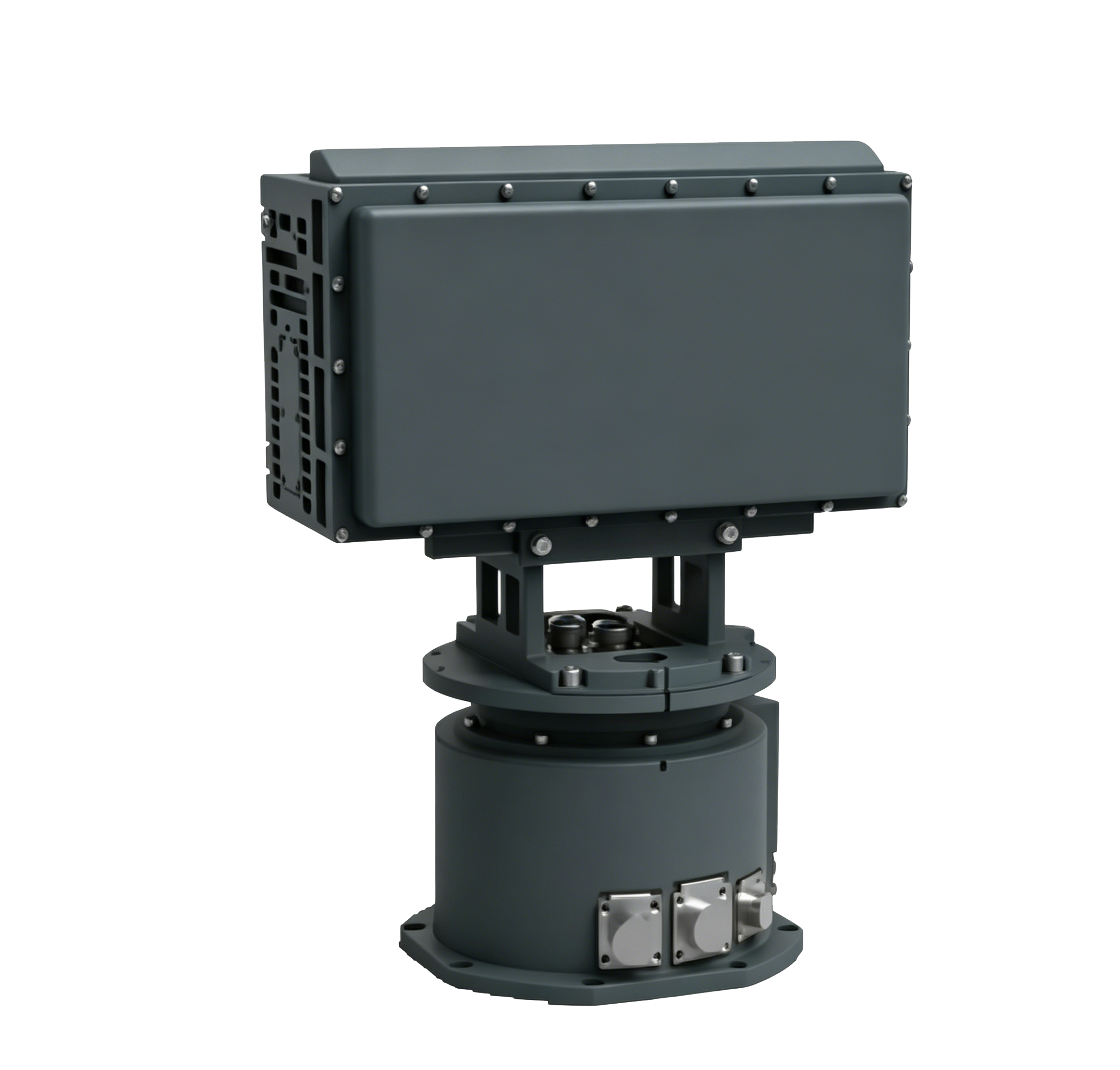

| Products | XR-RD06B |
|---|---|
| Operating Mode | Mechanical + 2D Phase Scan |
| Search Coverage | Mech: Azimuth 0°~360°, Elev 0°~80°; Phase: Azimuth -45°~45°, Elev 0°~80° |
| Target Update Rate | Mech: ≤3.5s (30° elevation), Phase: ≤3s |
| Weight | ≤22kg (excl. PSU & tripod) |
| Power Consumption | ≤200W |
| Dimensions | ≤435mm×318mm×210mm |
Variant Specifications

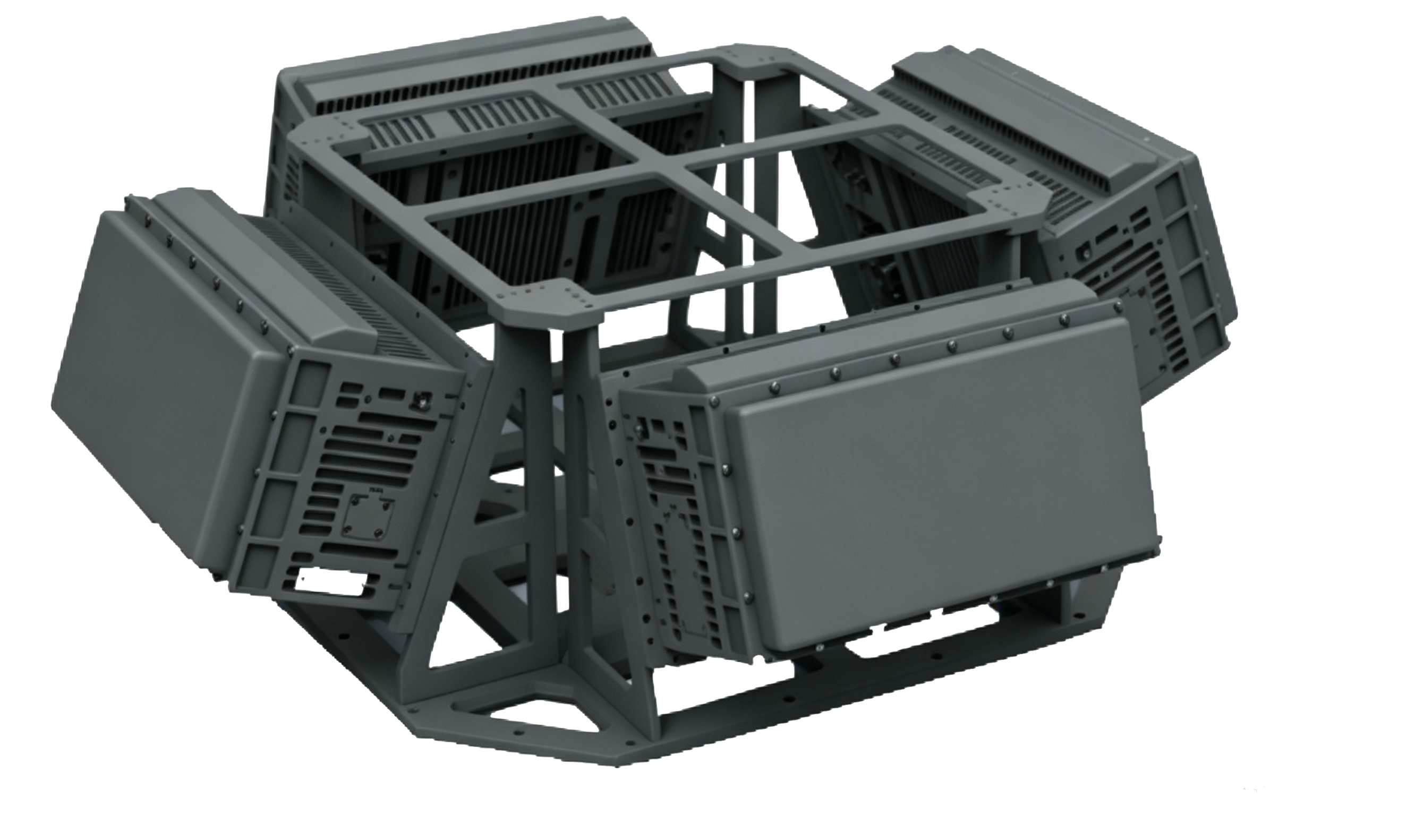

| Products | XR-RD06C |
|---|---|
| Operating Mode | 2D Phased Array |
| Search Coverage | Azimuth: 0°~360°, Elevation: 0°~80° (configurable) |
| Target Update Rate | TWS: ≤3s (30° elevation), TAS: ≤0.5s (default) |
| Weight | ≤50kg (excl. PSU & tripod) |
| Power Consumption | ≤1000W |
| Dimensions | ≤861mm×861mm×360mm |
