XR-RD08 Series
Low-Altitude Surveillance Radar
X-Band Long-Range Phased Array Radar
The XR-RD08 series X-band long-range phased array radar employs a fully solid-state, fully coherent, pulse-Doppler architecture for all-weather detection and early warning of "Low-Small-Slow" targets. AI classification based on micro-Doppler and track features enables effective detection and classification of UAVs, light aircraft, helicopters, and other targets at extremely low false-alarm rates. Expandable to mechanical + phase-scan and multi-panel configurations.
Model Variants
Variant Specifications

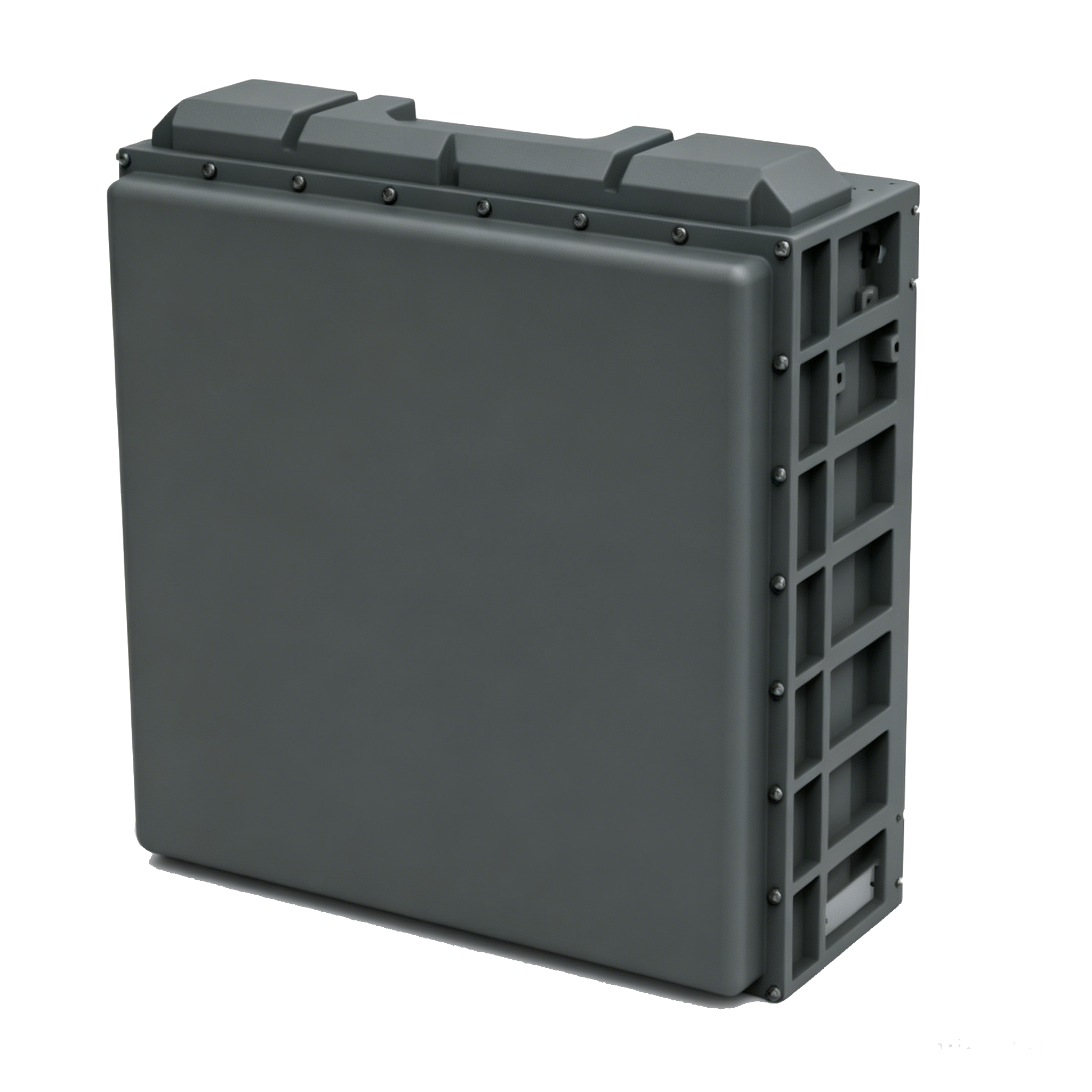

| Products | XR-RD08A |
|---|---|
| Operating Mode | 2D Phased Array |
| Search Coverage | Azimuth: ±45°, Elevation: 0°~80° (configurable) |
| Target Update Rate | TWS: ≤3.6s (30° elevation), TAS: ≤0.5s (default) |
| Weight | ≤15kg (single panel) |
| Power Consumption | ≤600W |
| Dimensions | ≤337mm×317mm×145mm |
Variant Specifications

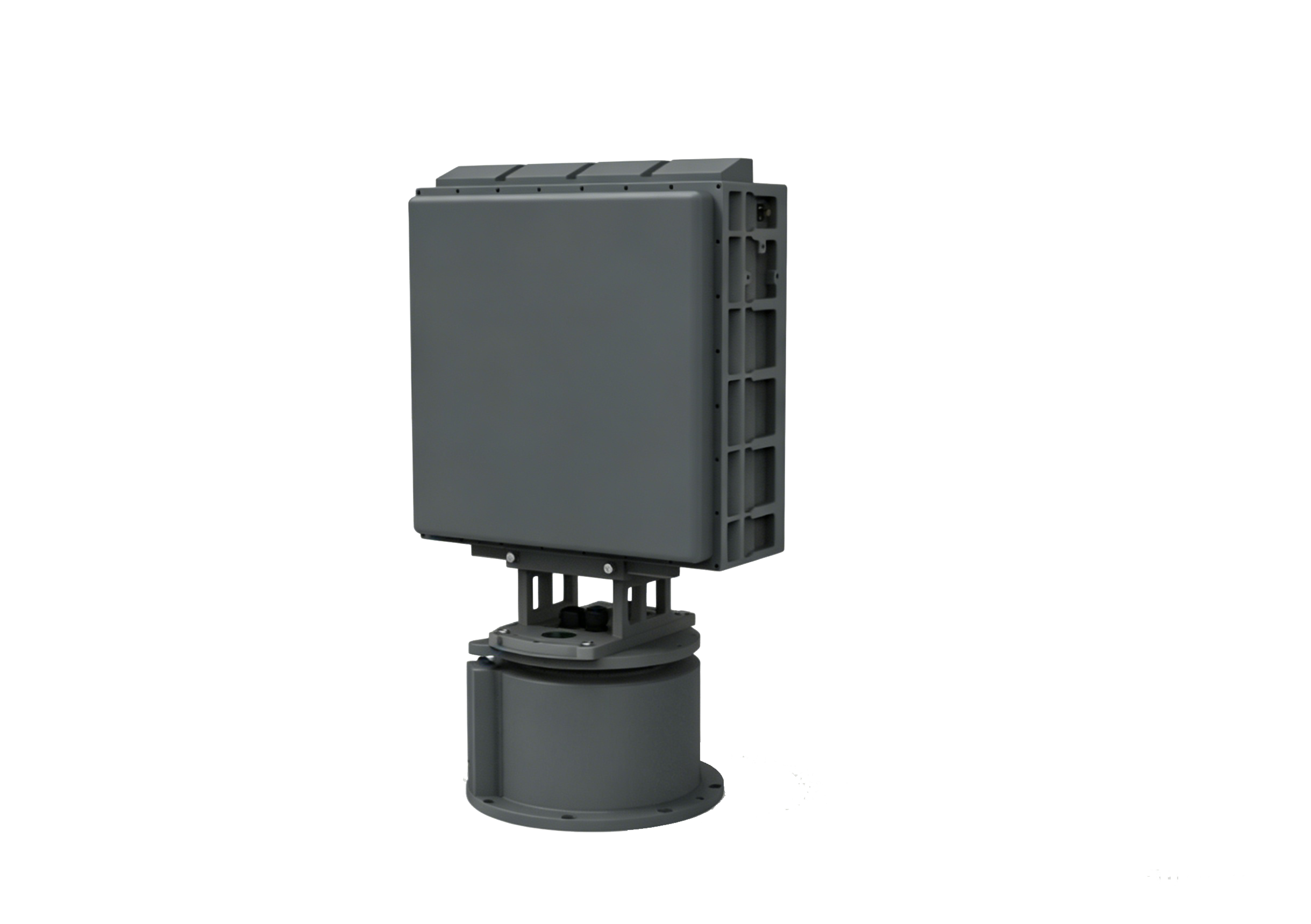

| Products | XR-RD08B |
|---|---|
| Operating Mode | Mechanical + 2D Phase Scan |
| Search Coverage | Mech: Azimuth 0°~360°, Elev 0°~80°; Phase: Azimuth -45°~45°, Elev 0°~80° |
| Target Update Rate | Mech: ≤3.8s (30° elevation), Phase: ≤3.6s |
| Weight | ≤30kg (excl. PSU & tripod) |
| Power Consumption | ≤600W |
| Dimensions | ≤570mm×317mm×220mm |
Variant Specifications

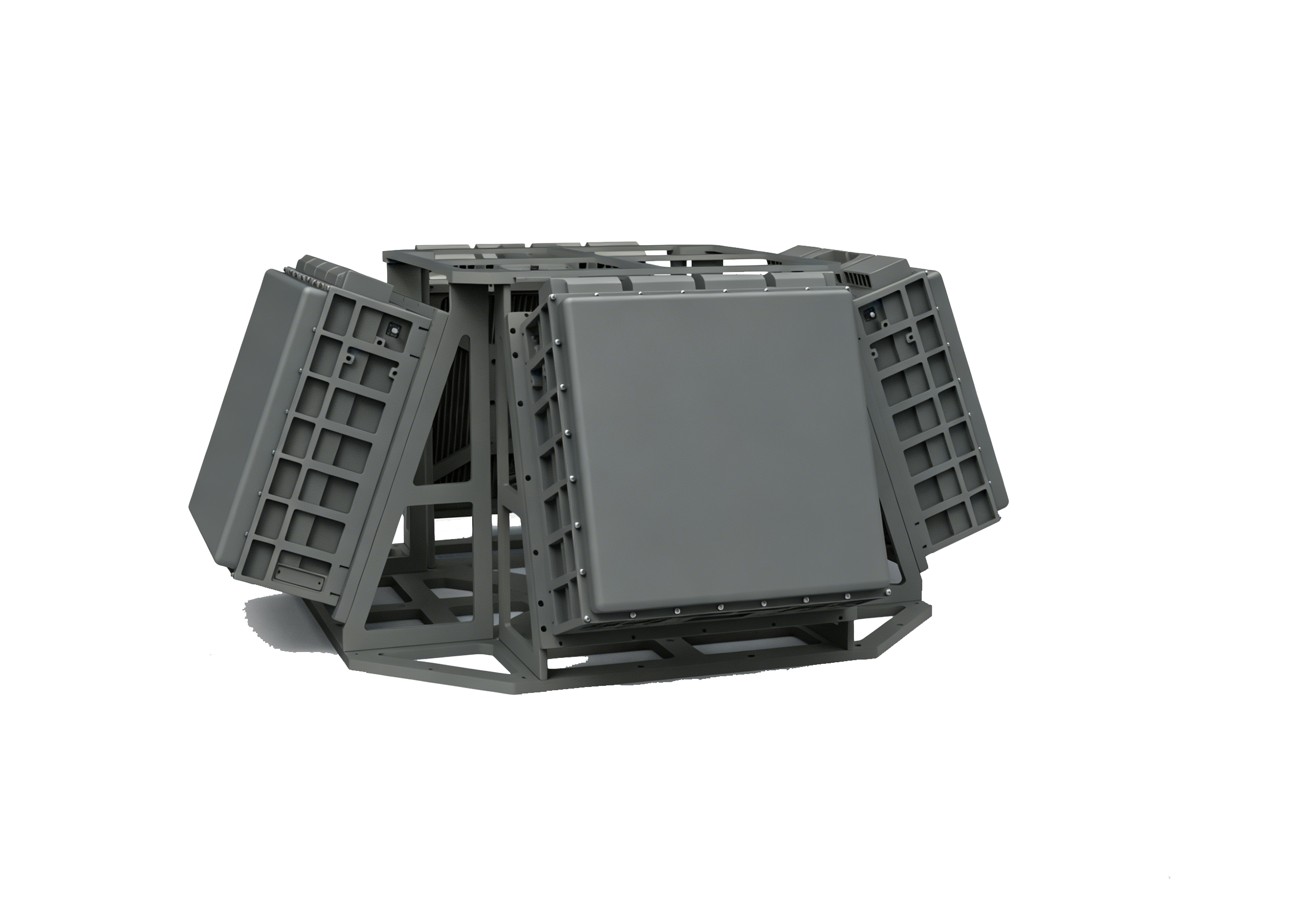

| Products | XR-RD08C |
|---|---|
| Operating Mode | 2D Phased Array |
| Search Coverage | Azimuth: 0°~360°, Elevation: 0°~80° (configurable) |
| Target Update Rate | TWS: ≤3.6s (30° elevation), TAS: ≤0.5s (default) |
| Weight | ≤90kg (excl. PSU & tripod) |
| Power Consumption | ≤2500W |
| Dimensions | ≤950mm×950mm×450mm |
