XR-RD10 Series
Low-Altitude Surveillance Radar
X-Band Short-Range Phased Array Radar
The XR-RD10 series X-band short-range phased array radar employs a fully solid-state, fully coherent, pulse-Doppler architecture for all-weather detection and early warning of "Low-Small-Slow" targets. AI classification based on micro-Doppler and track features enables effective detection and classification of UAVs, light aircraft, helicopters, and other targets at extremely low false-alarm rates. Expandable to mechanical + phase-scan and multi-panel configurations.
Model Variants
Variant Specifications

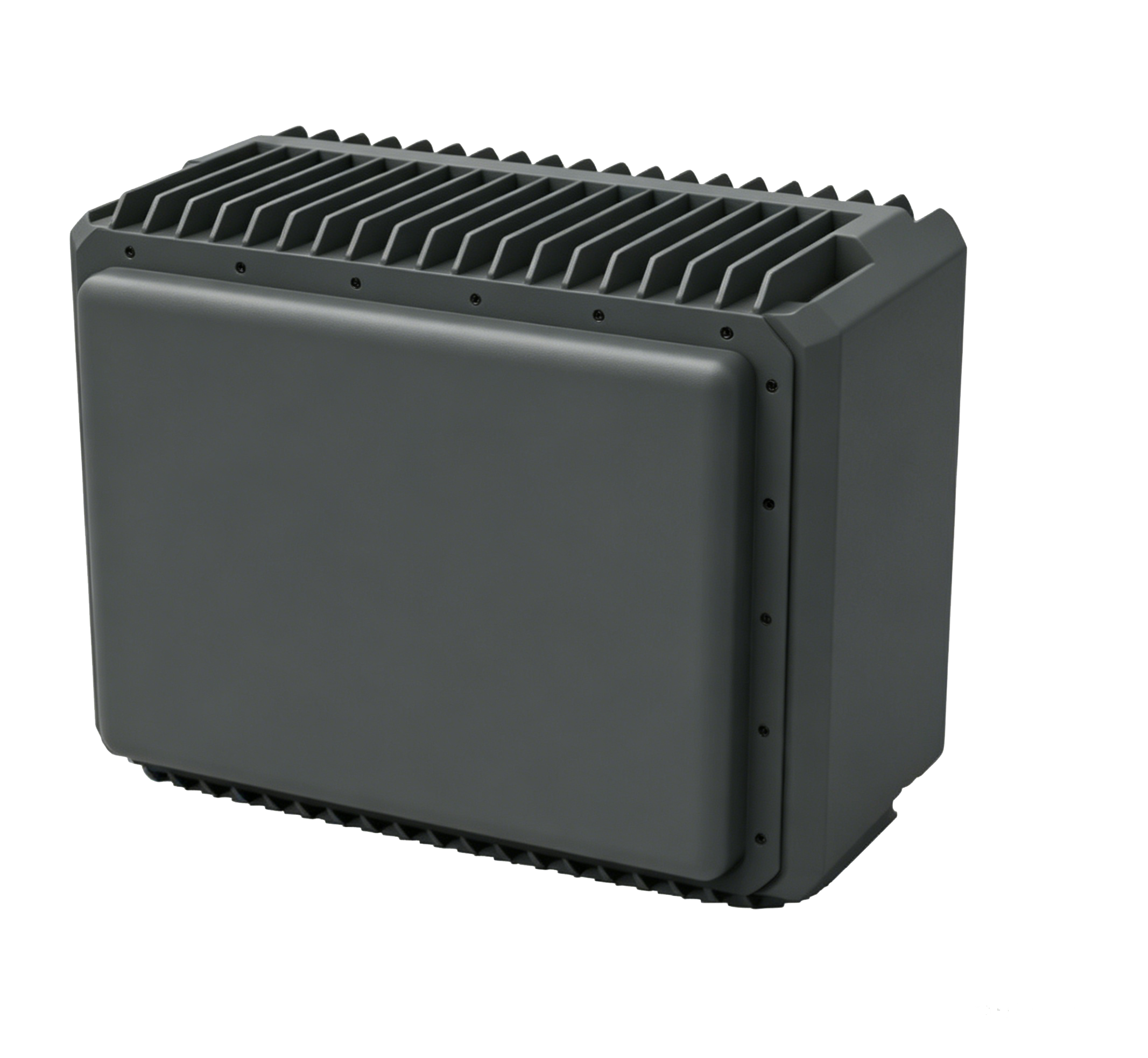

| Products | XR-RD10A |
|---|---|
| Operating Mode | 2D Phased Array |
| Search Coverage | Azimuth: ±45°, Elevation: 0°~80° (configurable) |
| Target Update Rate | TWS: ≤3s (60° elevation), TAS: ≤0.5s (default) |
| Weight | ≤7.5kg (single panel) |
| Power Consumption | ≤140W |
| Dimensions | ≤265mm×205mm×150mm |
Variant Specifications

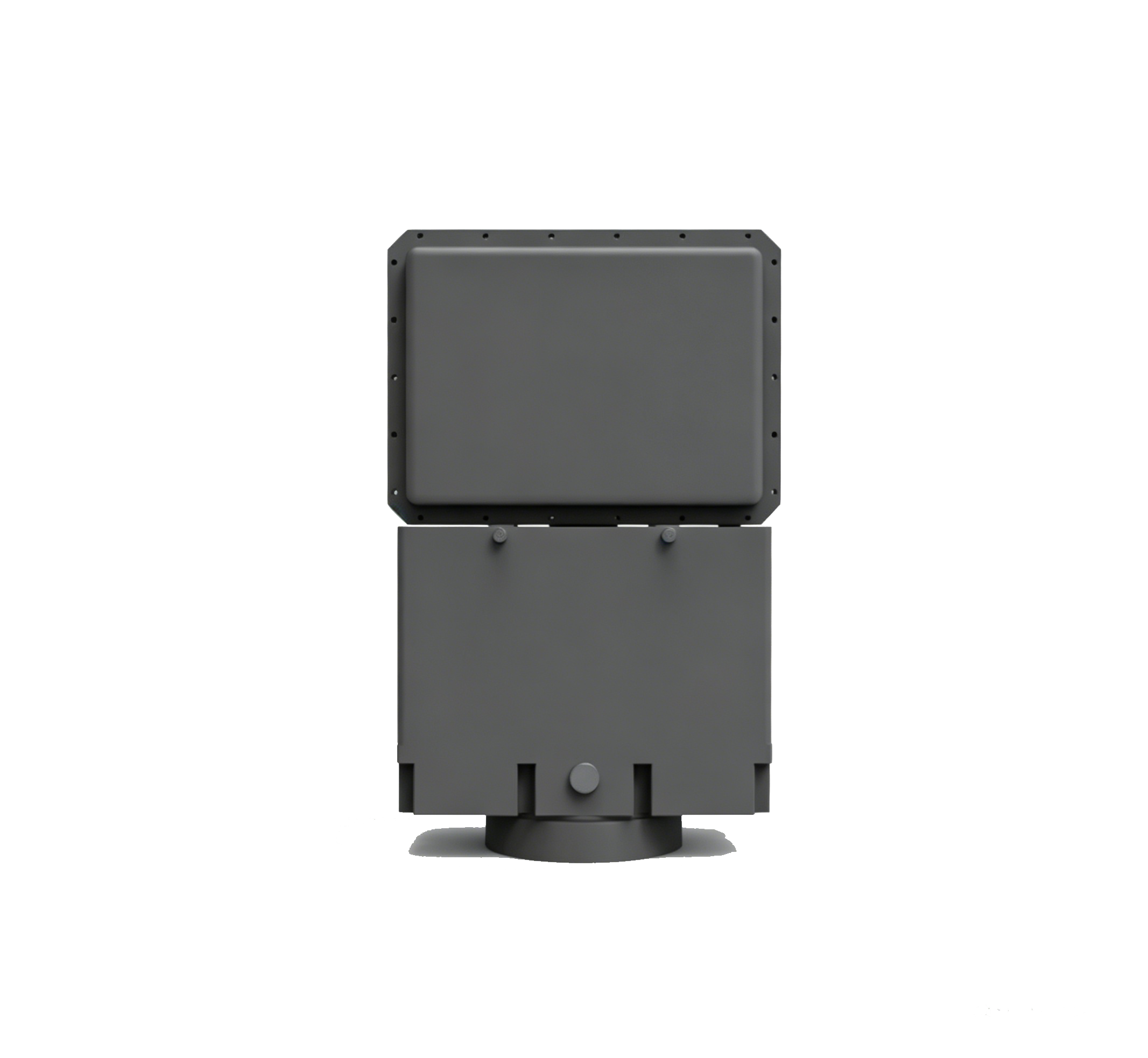

| Products | XR-RD10B |
|---|---|
| Operating Mode | Mechanical + 2D Phase Scan |
| Search Coverage | Mech: Azimuth 0°~360°, Elev 0°~80°; Phase: Azimuth -45°~45°, Elev 0°~80° |
| Target Update Rate | Mech: ≤3s (60° elevation), Phase: ≤3s (30° elevation) |
| Weight | ≤17kg (excl. PSU & tripod) |
| Power Consumption | ≤150W |
| Dimensions | ≤410mm×265mm×135mm |
Variant Specifications

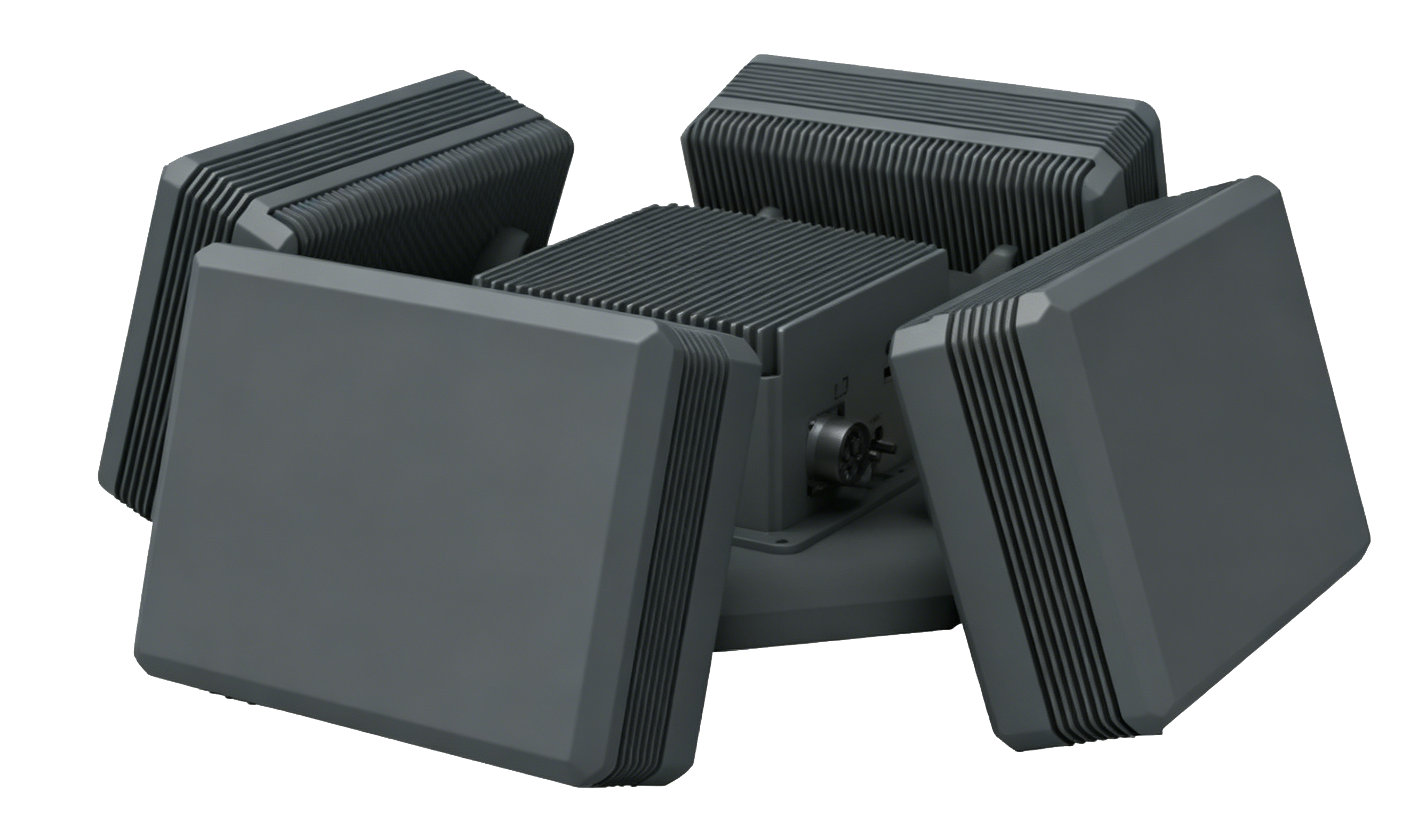

| Products | XR-RD10C |
|---|---|
| Operating Mode | 2D Phased Array |
| Search Coverage | Azimuth: 0°~360°, Elevation: 0°~80° (configurable) |
| Target Update Rate | TWS: ≤3s (60° elevation), TAS: ≤0.5s (default) |
| Weight | ≤45kg (excl. PSU & tripod) |
| Power Consumption | ≤600W |
| Dimensions | ≤720mm×720mm×230mm |
