Ku-Band DBF Radar
This product has a detection range of ≥10 km and is listed under China's Dual-Use Items and Technologies Export Control List. Export requires a valid MOFCOM export licence. The buyer must submit an End-User Certificate (EUC), End-Use Certificate, and a Non-Re-export Declaration. Transactions are subject to dual supervision by China Customs and the Ministry of Commerce. Violation of export control regulations may result in criminal liability under Chinese law.

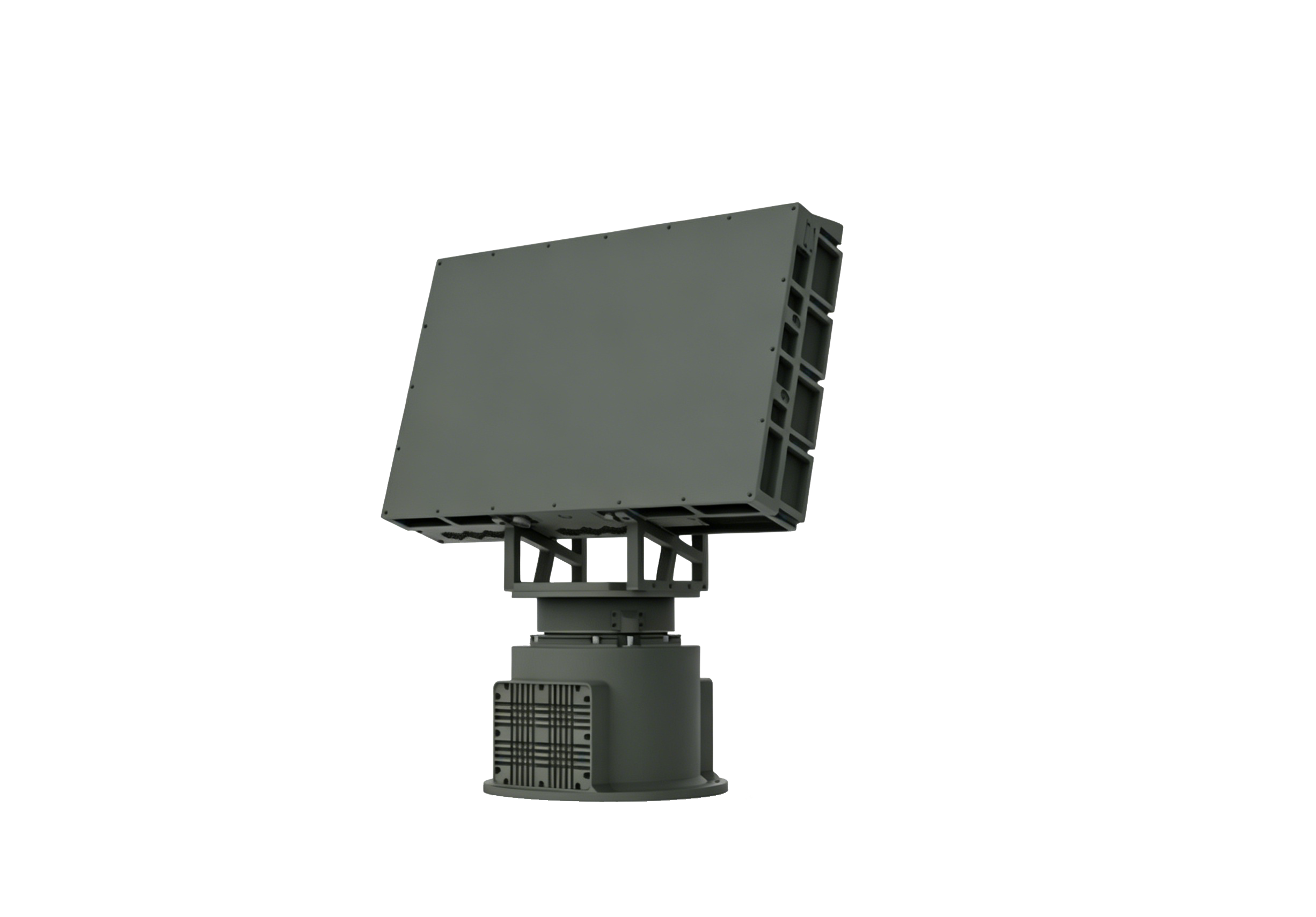

The XR-RD09 Ku-band DBF radar employs a fully solid-state, fully coherent, pulse-Doppler architecture for all-weather detection and tracking of rapidly manoeuvring "Low-Small-Slow" targets. Using azimuth mechanical scan combined with elevation Digital Beamforming (DBF), the XR-RD09 achieves a faster target update rate compared to 2D phased array and conventional mechanically-scanned radars.
Variant Specifications
| Parameter | Value |
|---|---|
| Frequency Band | Ku Band |
| Detection Range | ≥10km (RCS: 0.01m²) |
| Blind Zone | ≤200m |
| Operating Mode | Azimuth: Mechanical, Elevation: DBF |
| Search Coverage | Mech: Azimuth 0°~360°, Elev 0°~50°; Phase: Azimuth -45°~45°, Elev 0°~50° |
| Target Update Rate | ≤2s |
| Resolution | Range: ≤15m, Azimuth: ≤6°, Elevation: ≤4° |
| Search Accuracy (RMS) | Range: ≤10m, Azimuth: ≤0.4°, Elevation: ≤0.4° |
| Interface | RJ45 Ethernet |
| Target Capacity | ≥200 tracks |
| Weight | ≤80kg (excl. PSU & tripod) |
| Power Supply | AC220V / DC28V |
| Power Consumption | ≤2000W |
| Dimensions | ≤840mm×690mm×360mm |
| Protection Rating | IP66 |
